An architecture board is a single surface that presents a project. Unlike a full presentation set, which may have multiple boards, a single board must be concise, self-contained, and visually striking. It must tell the whole story in one view. A great board is not a collage of everything — it is a selection of what matters.
These 12 architecture board ideas span layout strategies, graphic approaches, and narrative techniques. Each idea includes defining characteristics, composition principles, and applications.
1. The Hero Image Board
The hero image board features a single, large, full-bleed image of the building. The image fills the entire board — edge to edge, top to bottom. Typography is overlaid on the image in a bold, simple typeface, placed in a consistent location. Drawings are small or absent.
This board type is for maximum visual impact. The image must be extraordinary — a dramatic perspective, an unusual angle, a beautiful light. The emotional effect is bold, immersive, and unforgettable.
Quick Tips
- The image must be high resolution — it will fill the entire board.
- Place typography where it contrasts with the image.
- Keep text minimal — building name, architect, date, location.
2. The Grid of Drawings Board

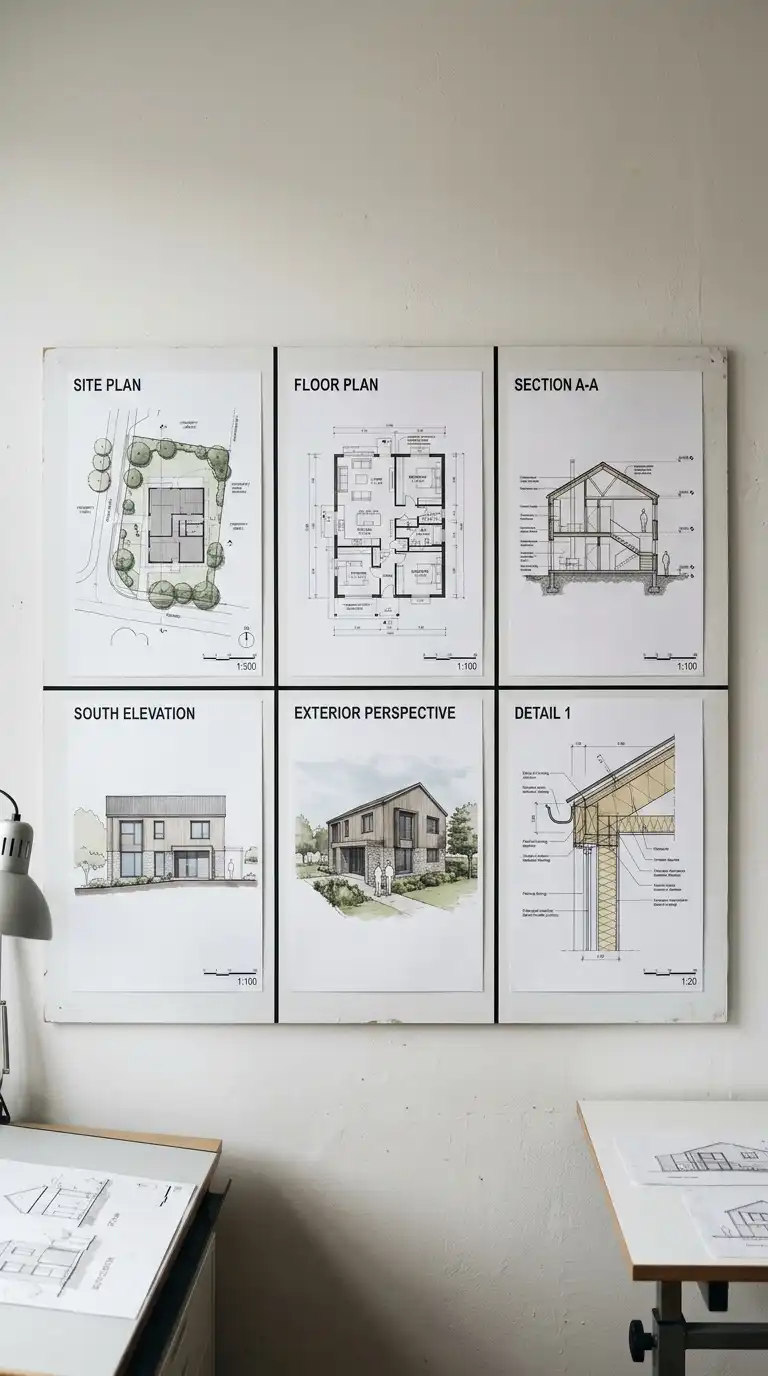

The grid of drawings board presents multiple drawings in a regular grid. The grid might be 2×2, 3×2, or 3×3. Each cell contains a different drawing: site plan, floor plan, section, elevation, perspective, detail. The grid is strict and consistent.
This board type is for technical presentations and academic juries. The emotional effect is rational, comprehensive, and orderly.
Quick Tips
- All cells must be the same size.
- All drawings must be at the same scale or clearly scaled.
- Use thin lines for the grid; white space between cells.
3. The Before-and-After Board

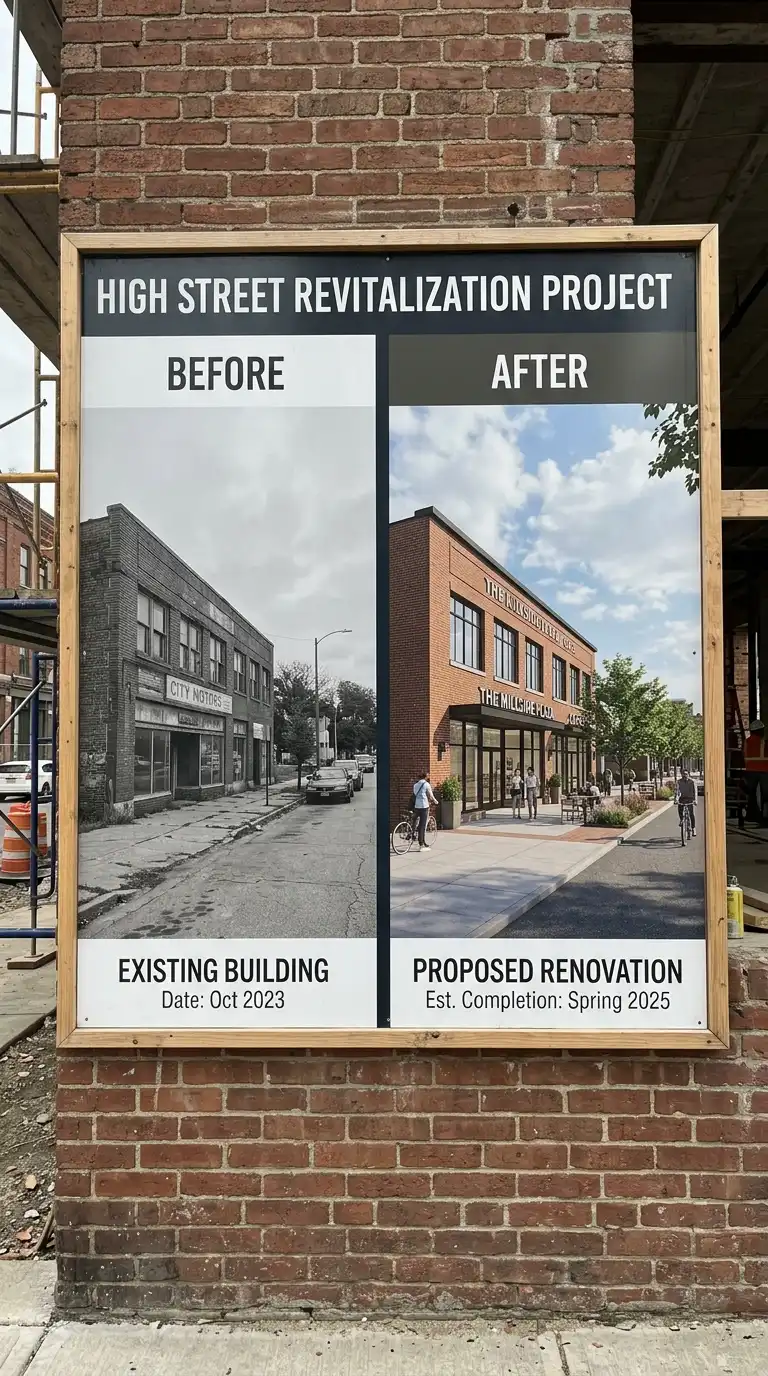

The before-and-after board shows the existing site or building alongside the proposed design. The two images are the same scale, same orientation, and same viewpoint. The comparison is direct and powerful. The board is split vertically or horizontally.
This board type is ideal for renovations, additions, and urban design projects. The emotional effect is persuasive, dramatic, and immediately understandable.
Quick Tips
- The before and after images must be exactly the same scale and viewpoint.
- Use colour for the proposed design, greyscale for the existing.
- Split the board vertically (left-right) or horizontally (top-bottom).
4. The Process Sequence Board
The process sequence board shows the design evolving over time. A series of diagrams, sketches, or models shows the project from first concept to final design. The sequence is arranged in a row or grid, from left to right, top to bottom.
This board type demonstrates how you think. It proves that the final design was earned, not stumbled upon. The emotional effect is intellectual, transparent, and persuasive.
Quick Tips
- Number each step so the sequence is clear.
- Each step should have a short caption explaining the change.
- The final step should be the only one with full detail.
5. The Site-Specific Board
The site-specific board integrates the proposed building into photographs of the site. A rendering of the building is overlaid onto a photograph of the empty site. The building is drawn at the correct scale and perspective. The board may also include a site plan and context photos.
This board type answers the most important question: how does this belong here? The emotional effect is contextual, realistic, and persuasive.
Quick Tips
- Use a high-quality site photograph taken from the most important viewpoint.
- Match the perspective of the rendering exactly to the photograph.
- The rendering should be semi-transparent or use the same light as the photograph.
6. The Material-First Board

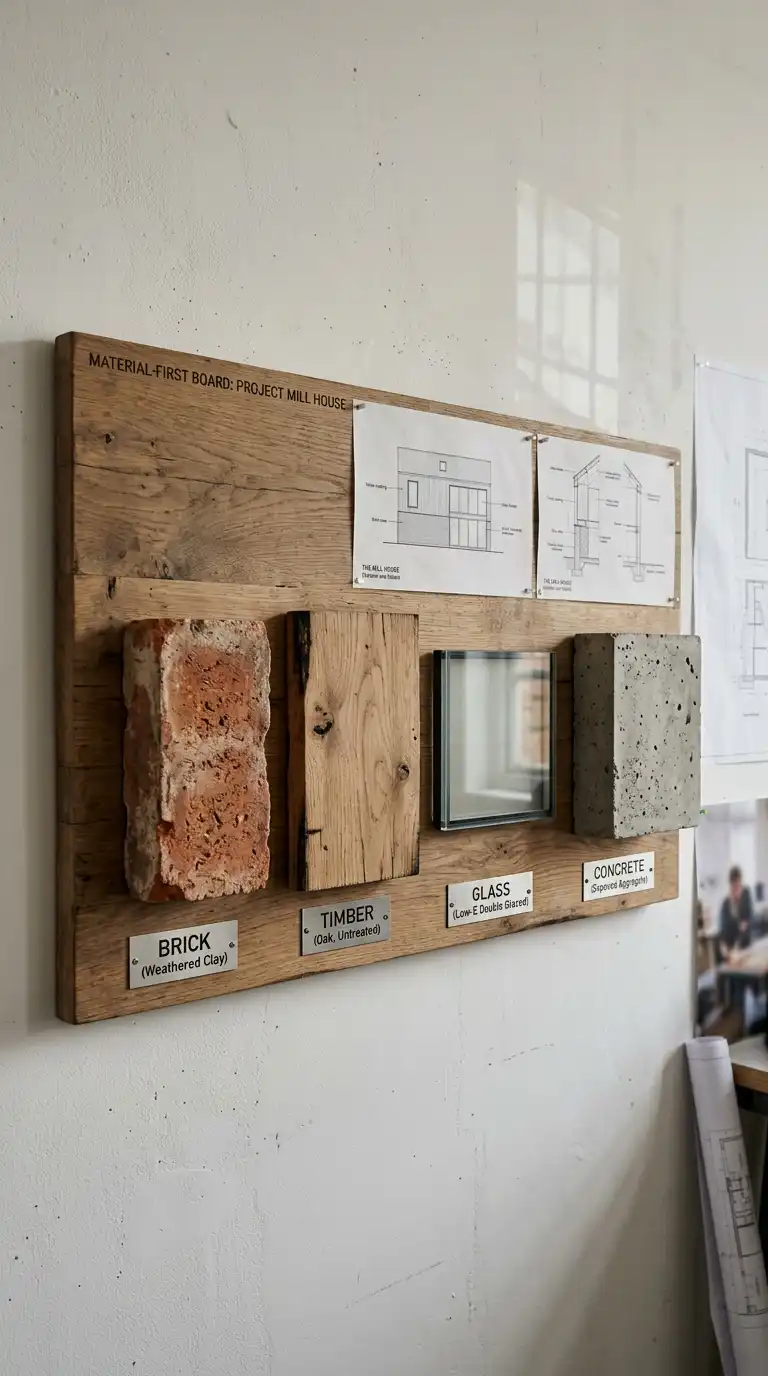

The material-first board prioritises material samples over drawings. The board includes actual samples of stone, wood, concrete, glass, and metal. The samples are arranged in a composition that reflects the building’s material strategy. Drawings are secondary — small and in the background.
This board type is ideal for clients who care about craft and quality. The emotional effect is tactile, sensory, and materially intelligent.
Quick Tips
- Use actual material samples, not photographs.
- Arrange samples in the same proportions they will appear in the building.
- Label each sample with name, supplier, and finish.
7. The Diagram-Only Board

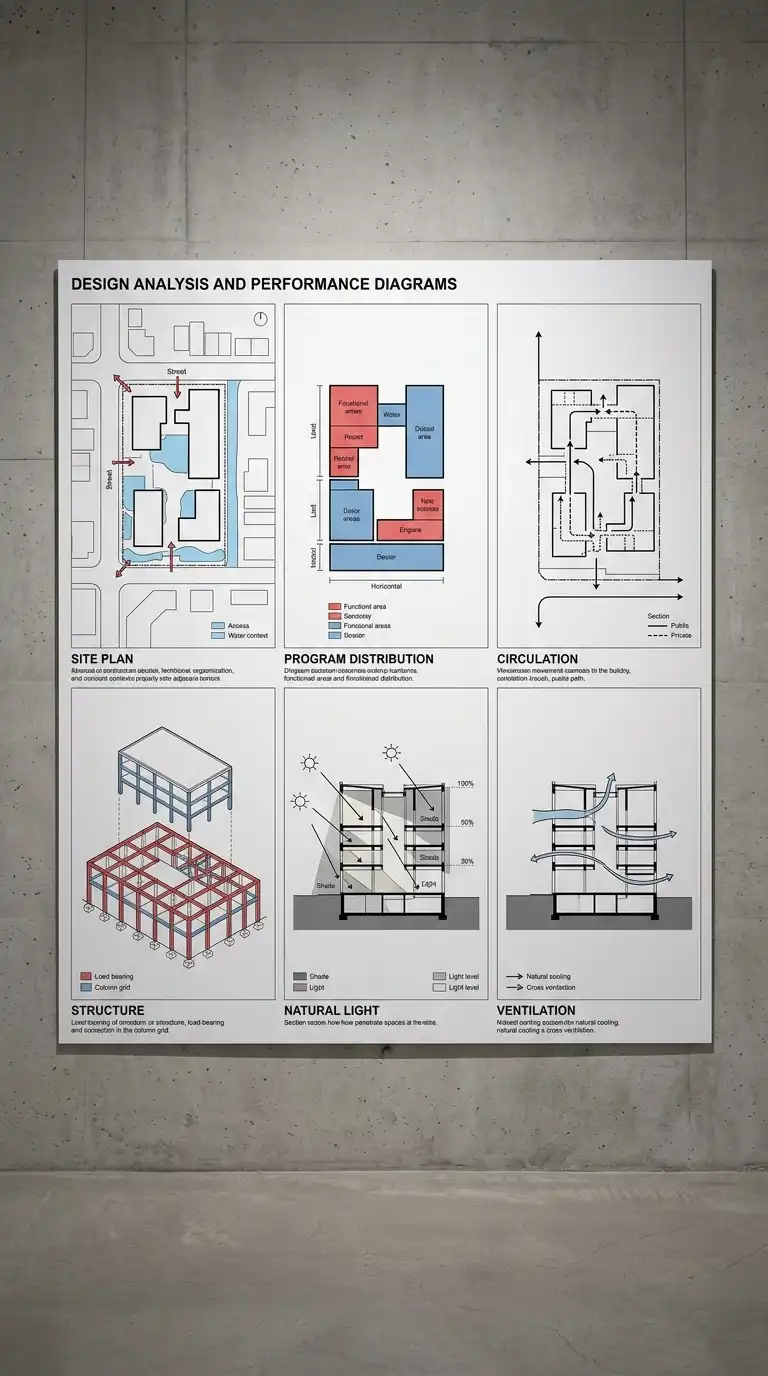

The diagram-only board uses no renderings, no photographs, no material samples. Only diagrams. The diagrams explain the building’s organisation: program, circulation, structure, light, ventilation, site. Each diagram is simple, graphic, and colour-coded.
This board type is ideal for academic juries and technical reviews. The emotional effect is analytical, clear, and intellectually rigorous.
Quick Tips
- Use no more than three colours across all diagrams.
- Each diagram should explain a single idea.
- Arrange diagrams in a logical sequence.
8. The Large-Scale Section Board
The large-scale section board uses a single section drawing at a very large scale. The section is printed at 1:50 or 1:20, covering most of the board. The drawing shows structure, material, program, and human figures at the same scale.
This board type is ideal for explaining complex spatial and structural ideas. The emotional effect is immersive, detailed, and impressive.
Quick Tips
- Print the section at the largest scale possible — 1:50 or larger.
- Include human figures at the same scale.
- Annotate the section with material notes and design intentions.
9. The Model-First Board

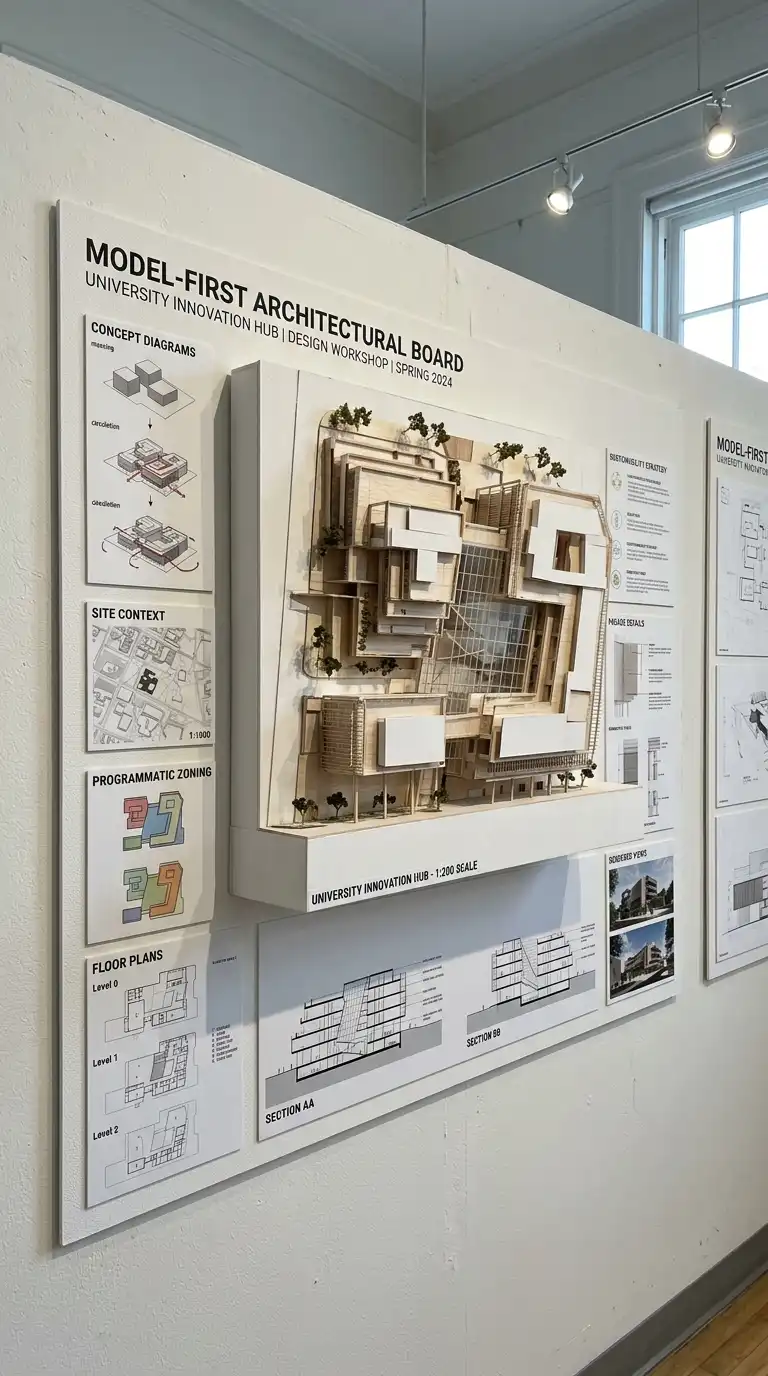

The model-first board places a physical model at the centre of the board. The model is mounted on a base. Drawings are secondary — small panels around the model. The viewer looks at the model first, then the drawings.
This board type is ideal for design reviews and client meetings. The emotional effect is tactile, three-dimensional, and engaging.
Quick Tips
- The model should be large enough to be seen from 1-2 metres away.
- Drawings should be on small panels, not competing with the model.
- The model should be mounted on a clean white base.
10. The Narrative Board
The narrative board tells a story. The story might be a day in the life of the building, the history of the site, or the journey of the architect. The board is organised like a book, with a beginning, middle, and end. Images and text work together.
This board type is ideal for competitions and public presentations. The emotional effect is engaging, memorable, and human.
Quick Tips
- Write the story before you make the images.
- Each image should advance the story, not repeat it.
- Use a consistent graphic style across all images.
11. The Hand-Drawn Board

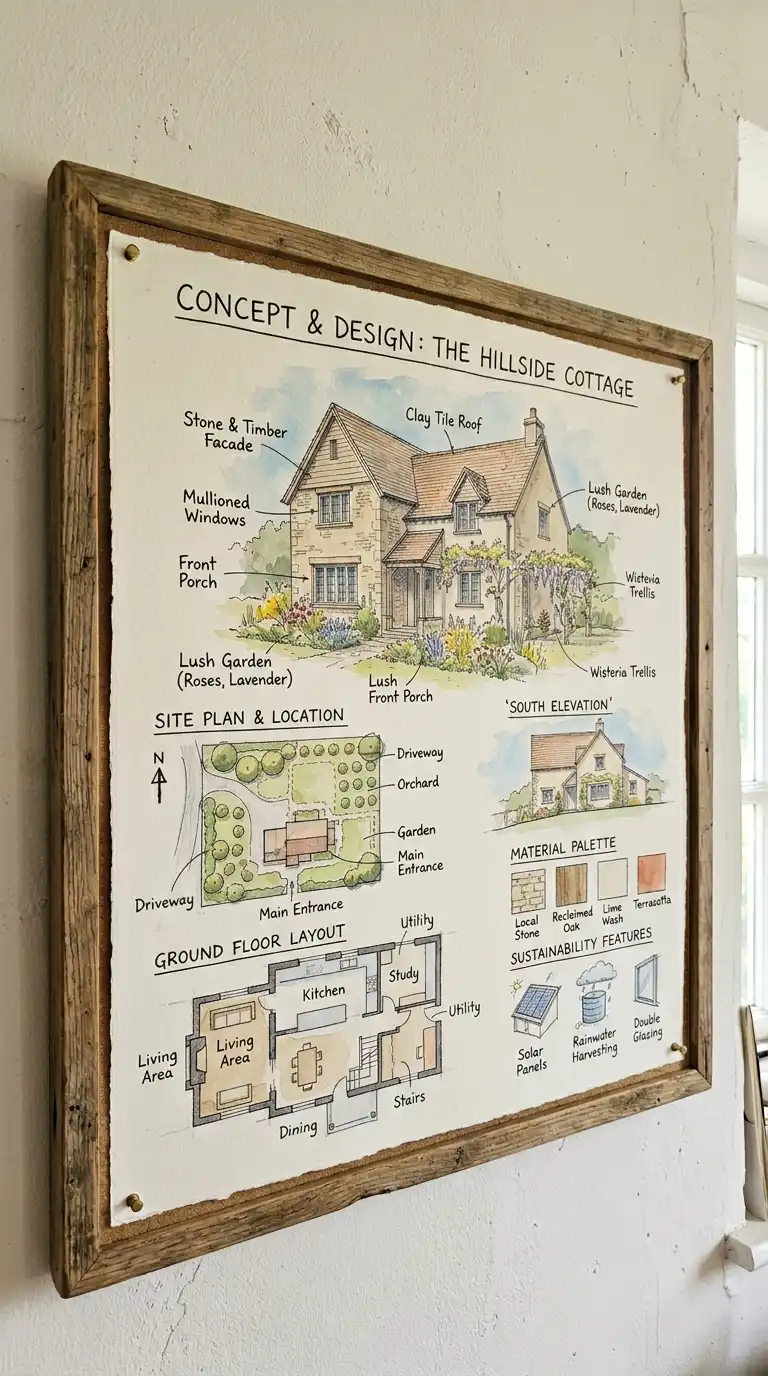

The hand-drawn board uses no digital tools. All drawings are hand-drawn: pencil, ink, watercolour. The drawings are mounted on the board. The handwriting is the typography. The board is personal and crafted.
This board type is ideal for emphasising craft and process. The emotional effect is personal, authentic, and warm.
Quick Tips
- Draw at final board size — do not reduce copies.
- Use consistent line weights and hatching across all drawings.
- Write neatly — hand lettering is part of the aesthetic.
12. The Comparative Board

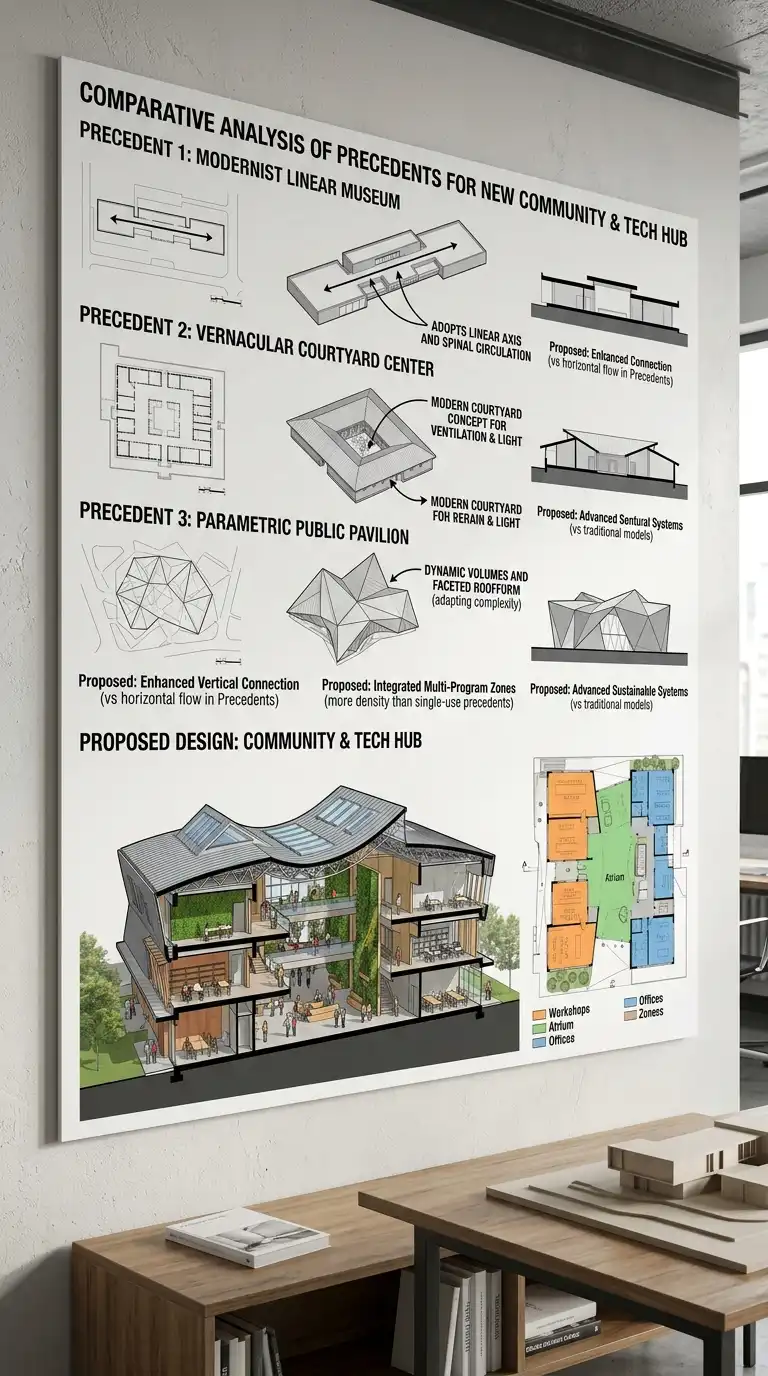

The comparative board shows the proposed design alongside precedents. The precedents might be historical buildings, contemporary projects, or the architect’s own earlier work. The comparison is visual and diagrammatic.
This board type demonstrates that the design is situated within a larger architectural conversation. The emotional effect is erudite, contextual, and persuasive.
Quick Tips
- Use the same drawing type (plan, section, elevation) for all comparisons.
- Highlight similarities and differences with colour or notation.
- Keep the proposed design visually distinct from precedents.
Final Thoughts
An architecture board is not a portfolio. A portfolio is a collection of work. A board is an argument. It has a thesis, evidence, and a conclusion. The best boards are not comprehensive — they are selective. They leave things out. They focus on what matters.
These 12 board ideas are not mutually exclusive. A hand-drawn board can include a before-and-after comparison. A diagram-only board can be a process sequence. A model-first board can include a large-scale section. The best boards choose the format that fits the project, the audience, and the moment.
